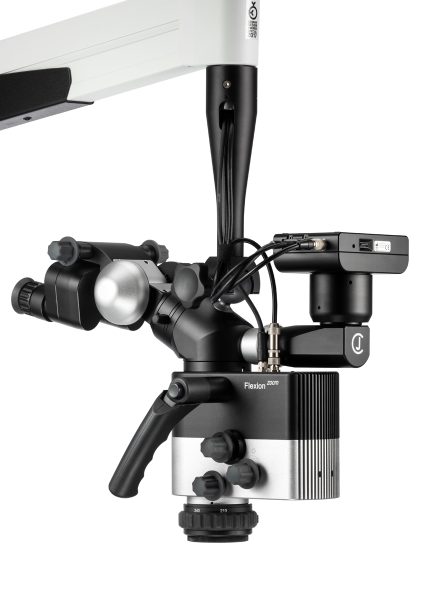

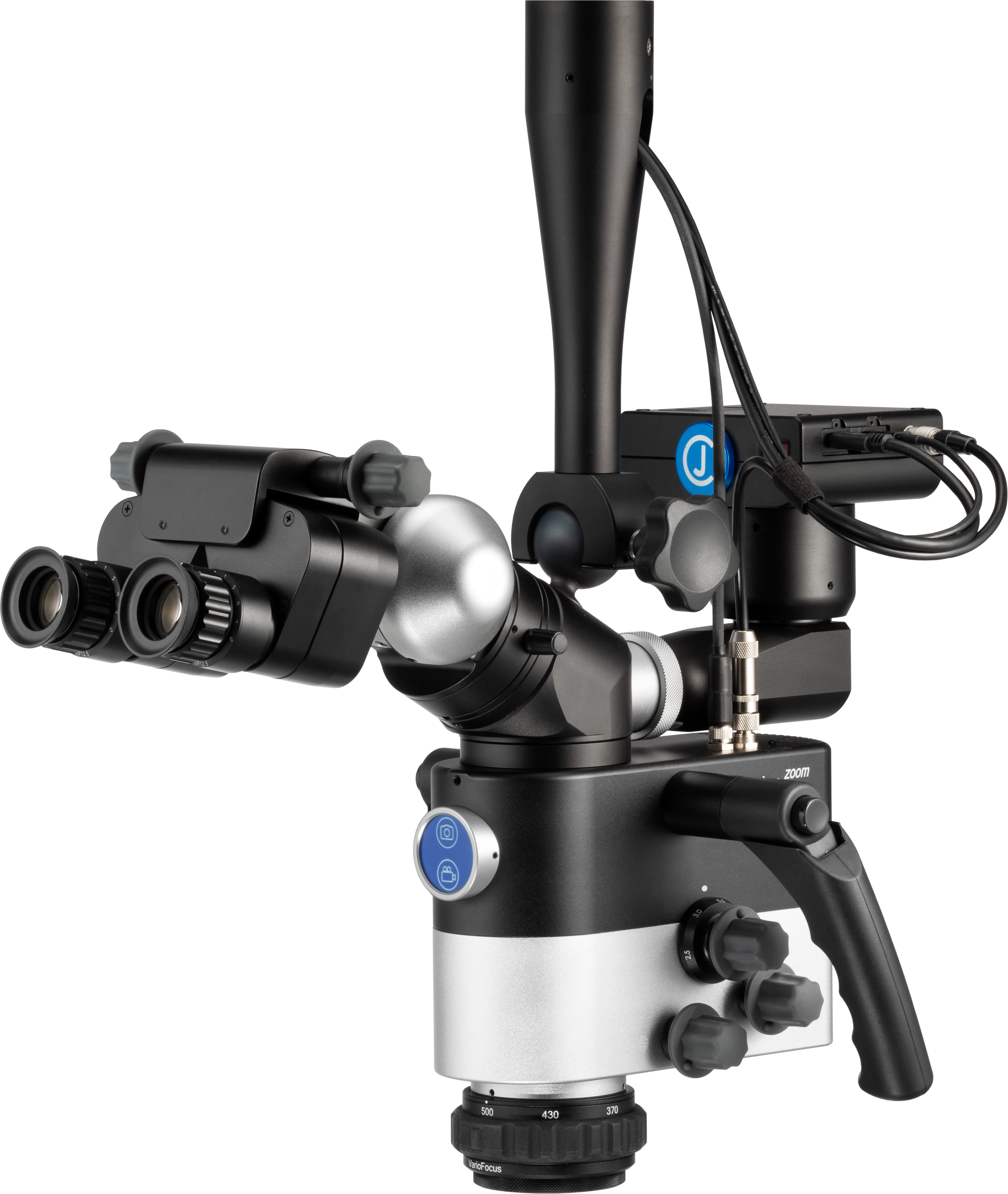

Flexion Zoom Advanced

• 20% continuously higher main magnification / y = 0.5 – 3.0
• Fully apochromatic Pancratic Zoom (1:6) system
• Sharper image quality by minimizing optical distortion
• Larger lens diameter for better aperture and depth of focus
• Optimum 3D impression through extended stereo base
• Time-saving – allows quick adjustment to changing viewing conditions
• Time efficiency – eliminates the need to switch between fixed magnifications
• Higher treatment precision – essential for detailed work

Optics – For superior results

Advanced Optical Design

CJ-Optik Flexion microscopes are highly acclaimed for their superior image quality. It is only through CJ-Optik working closely with the optics designer that the optimal specifications can be developed. With the use of apochromatic optics in the Flexion Advanced microscope dentists can detect the finest colour and structure details.

Perfect Illumination

The fanless LED spot lighting provides a well-lit treatment area with high colour rendering index and 5.500 K. Future-proof with 65,000 hours lifespan. The spot diaphragm always shows the assistant the exact treatment site and prevents light from falling into the patient‘s eyes.

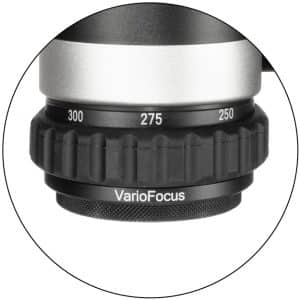

VarioFocus

Choose from either the VarioFocus⁴ with 200 – 350 mm range or the VarioFocus⁵  with 210 – 500 mm working distance and plan-apochromatic correct built-in optics. The superior light transmission provides optimal viewing and documentation results. Removable protection cover lens with Hydrophobic Coating (HPC). Index Matching Coating for highest transmission and low reflection rates.

Details make the Difference

Just to name some of the many remarkable features that makes working with the Flexion Advanced microscopes
so comfortable:

• Individual eyecup adjustment
• Large eye relief with bigger exit pupil
• IPD adjuster optionally available

Ergonomics – For stress-free treatments

Flexion

Anyone who has ever worked with one of our microscopes knows why we called them Flexion. We consider the Flexion as a flexible extension of the dentist’s eyes. The dentist‘s upright treatment position ensures a relaxed posture and thus prevents neck and back problems in the long term.

MonoGlobe

The uniquely designed MonoGlobe is the weightless movement balancing system. The coupling system allows fluid and smooth repositioning at all angles without having to adjust the tension.

Quality at the Touch of a Button

Ergonomically placed controls ensure that all functions are immediately at your fingertips for all inter-procedure changes.

Cable Management

HDMI, USB USB3, camera AC/DC power and 24V monitor power supply are integrated within the arm for a cleaner cable management. USB, HDMI, Medical monitor power integrated for a better workflow. No fragile fibre-optic cables that break or tangle.

Documentation

Whether you prefer to document the treatment in 4K, in HD or with a smartphone: Focal lengths and optics have been uniquely designed for an ideal match to today’s latest digital cameras.

4K-Imaging-Port
For Sony, Nikon & Canon FullFrame cameras

HD-Imaging-Port
For Sony, Nikon & Canon APS-C cameras

Phone-Imaging-Port
Adapter compatible with all smartphones (up to 6,5”)
MicVision App

SensorUnit
For Sony cameras
(FullFrame & APS-C)

Full Connectivity
Swivel Arm Advanced with HDMI, 24V, USB, USB3
Direct power supply for the camera from the microscope

CJ-Optik
recommends

MicroVis – Our documentation software saves time for the important things

With the MicroVis software specially developed for the Flexion microscopes, the image and video files of the treatment are conveniently and securely placed in your patient‘s file. Thanks to its user-friendliness, MicroVis relieves your team and you save important time. MicroVis is optionally available and compatible with all common practice management systems.

Mounting Options

Flexible and customized

Flexion – The name says it all, even with the different mounting options. In addition to the dimensions shown here, CJ-Optik also offers tailor-made heights and lengths of all tripod parts in order to adapt the assembly to the premises in the best possible way. In addition, the parts can be interchanged (e.g. when changing from floor to ceiling mounting).

Ideal for use in multiple rooms.

The space-saving alternative to the mobile stand.

Maintains ground clearance. Pillar height can be adjusted to any ceiling height.

The alternative to ceiling mounting.

We recommend a working position in which the suspension arm is at a right angle and the microscope head is at a distance of one meter from the vertical column (as shown above).

Technical Data
